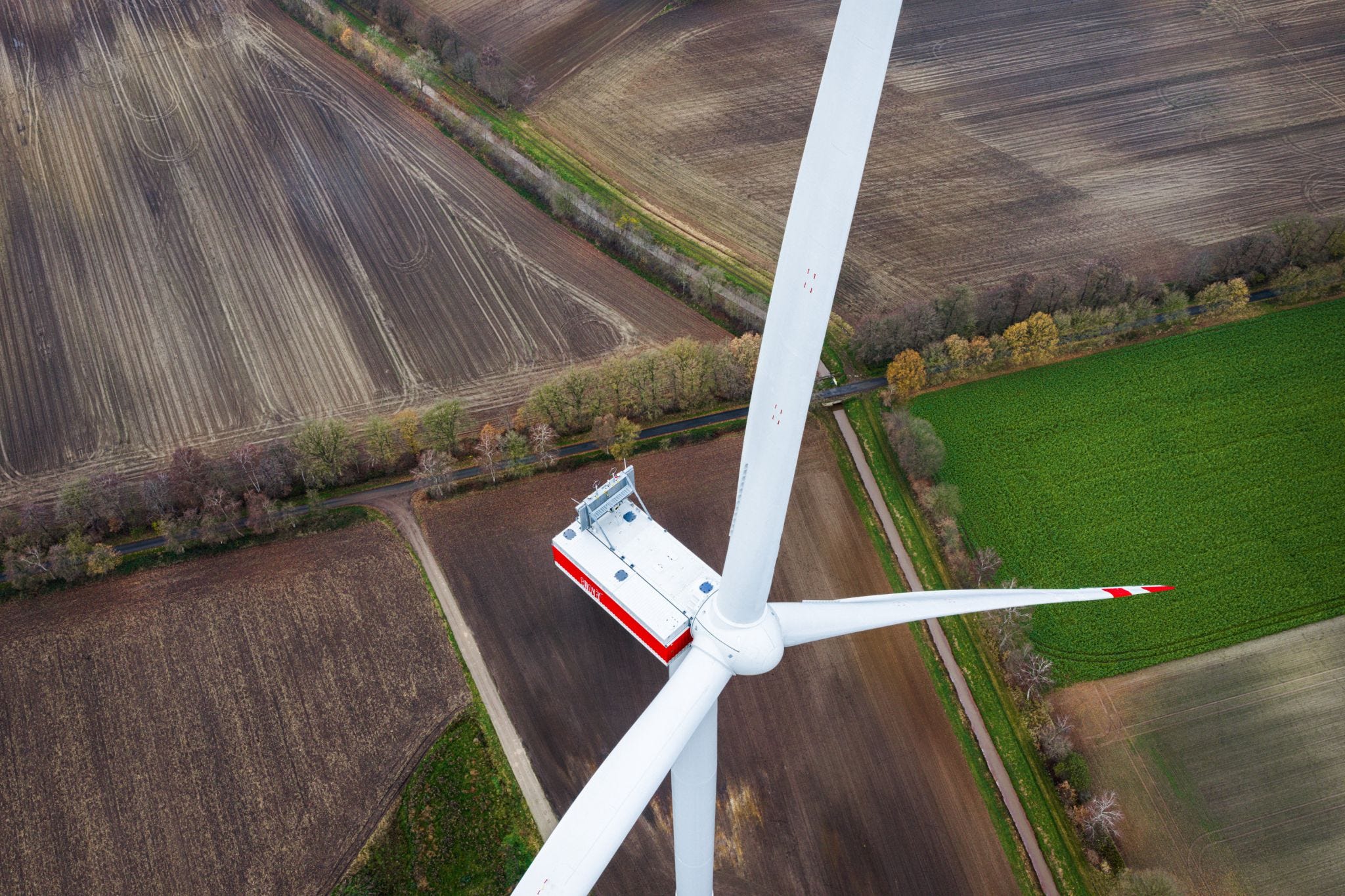

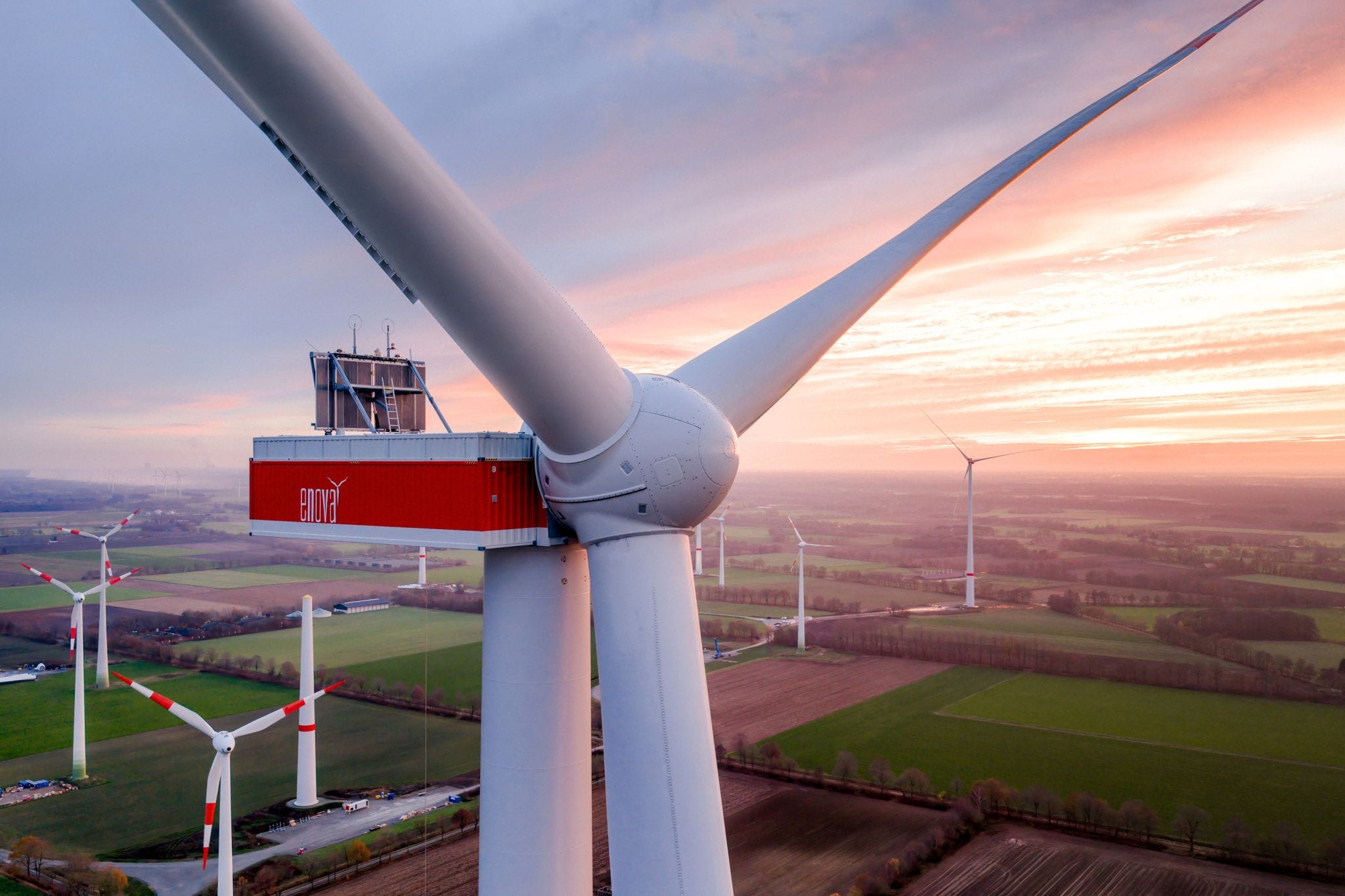

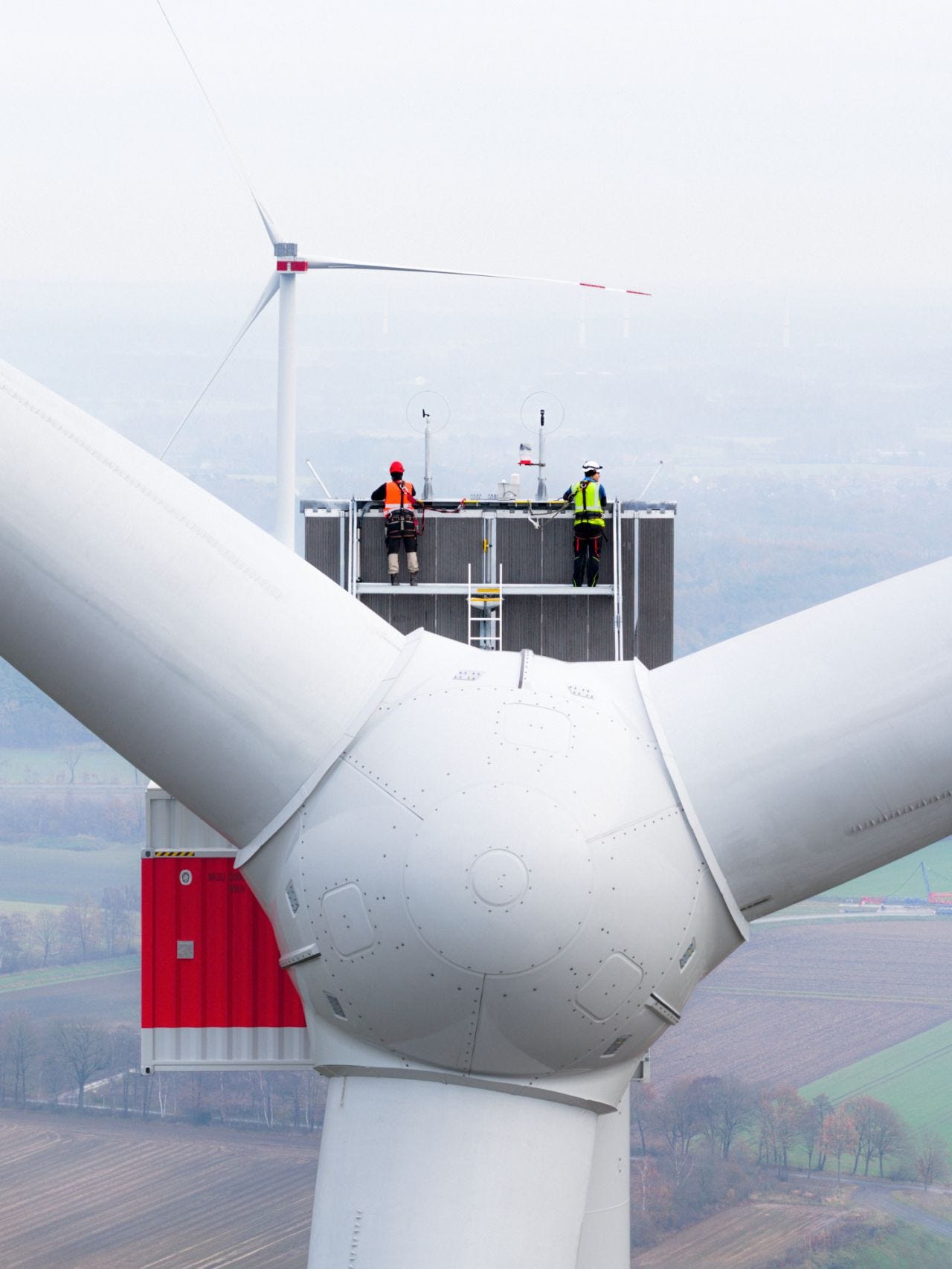

Vestas V172-7.2 MW™ EnVentus
The V172-7.2 MW™ is Vestas’s bet in the large-rotor onshore segment. The wind turbine is part of the EnVentus family, a platform that Vestas has progressively scaled starting from the V150-6.2 MW and V162-6.2 MW models.
With a 172-metre rotor and a power rating of up to 7.2 MW, it is designed specifically for low- and medium-wind sites, where it promises annual energy production increases of up to 12% compared to its predecessor, the V162-6.2 MW.
In addition, the EnVentus platform shares architecture and several components across both onshore and offshore, as part of Vestas’s bet on standardization and modularity.
Interestingly, as a result of this focus on modularity, the EnVentus platform features the first commercially available wind turbines with an asymmetrical design.
Main specifications
Rated power: 7,2 MW (with flexible modes at 6,8 MW and 6,5 MW)
Rotor / Swept area: 172 m / 23,235 m2
Power density: 310 W/m2 (at 7.2 MW)
Hub heights / Towers:
Steel: 114, 150, 166 m
Hybrid (concrete–steel): 164, 175, and 199 metres, the latter in collaboration with Max Bögl.
Drivetrain: Medium Speed PMSG
IEC 61400-1 class: Class S
Cut-in / Cut-out: 3–25 m/s
Noise: 107.8 dB at 7.2 MW
Design lifetime: 25 years
Climatic variants:
Standard: –20 °C to +45 °C (there may be derating)
Low temperature: cold climates from –30 °C to +45 °C (there may be derating)
High Temperature: includes a heat exchanger on the nacelle.
Certification:
Architecture and design
Drivetrain:
Main shaft: supported by two preloaded tapered roller main bearings, with the gearbox and generator in a cantilevered arrangement.
Gearbox: medium-speed ~420 rpm, two planetary stages.
Vestas works with ZF Wind Power and Winergy for the manufacturing of the integrated powertrain (gearbox and generator on the same frame).
Electrical system:
36-pole permanent magnet synchronous generator.
Full converter in the nacelle.
Transformer in the nacelle, immersed in ester.
SF6 medium-voltage switchgear, located at ground level.
Pitch: hydraulic, one cylinder per blade, with individual blade adjustment.
Yaw: up to 14 geared motors depending on the site’s climatic conditions. Preloaded plain bearings with PETP pads and brakes integrated into the drive motors themselves and into the bearings.
Blade:
84.3 m in length.
Manufactured in glass fibre and carbon fibre in the main spar (sparcap).
Triple-row roller bearing.
Tested at: (unknown).
Installed prototypes and first commercial installation
150 m steel tower, first prototype installed in Østerild, Denmark, in July 2024
175 m hybrid tower, first commercial installation in Germany, installed in June 2025
In-house manufacturing
Blades: Daimiel, Goleniow (Poland, former LM plant acquired by Vestas), Nakskov and Lem (both in Denmark)
Nacelles: Ringkøbing and Lindø (both in Denmark)
Track record and commercial pipeline
The first order for the V172-7.2 MW was announced in October 2023 (project in Germany).
As of May 2025, Vestas reported 1 GW of sales for 7+ MW onshore variants (including the V172). Europe and Australia are the main markets for this platform.
Competitors
Siemens Gamesa 7.0-170
Enercon E175 EP5 E2 (7.0 MW)
Goldwind GWH175-7.8 MW / GWH170-7.2 MW
Envision EN-171/8.X
